The TERRASource Advantage

There’s good reason why TERRASource Geothermal systems are industry-best.  One-hundred percent of our attention is focused on ensuring our geothermal systems continuously out-perform and out-class other vendors who simply “dabble” in our industry.  At TERRASource, we live and breath geothermal systems – it’s all we do!  Here are some of the top competitive advantages TERRASource offers you.

Tranquility Packaged Systems

With TERRASource, you don’t just get a heat pump, you get a complete ready-to-use Geothermal System.

We use self-contained units for heating, cooling and hot water that operates with standard thermostat and duct system. TERRASource (TS) is a pre-engineered and packaged system. Our system meets the needs of both the experienced professional and newcomers to geothermal applications.  The system is tailored to support most equipment manufacturer's heat pumps with up to 125,000 Btu in output. TS accommodates almost any horizontal or pond, closed loop configuration in most climates. We use simple color coded connections to make it easier for anyone.

System Includes:

  • Climate Master Heat pump
  • Copper manifolds including
  • GrundfosTM pumps
  • Solid brass mechanical components
  • Plastic polymer loop pipe
  • Plastic polymer loop pipe
  • pre-charged with environmentally safe antifreeze.

Everything is color coded and labeled for easy installation.

Quality and Flexibility:

  • Our products undergo a strict quality assurance standard
  • Certified, UL listed brand name parts and equipment
  • Strict quality assurance manufacturing standard
  • Each loop is weighed to ensure length & accuracy
  • Pressure tested to 100 PSI
  • - with digital and certified metering of the antifreeze component.
  • Solid copper & brass manifolds are pressure tested to 100 PSI
  • Solid copper & brass manifolds are pressure tested to 100 PSI
  • air removal function tested.
  • State of the art, customized design software
  • Engineering of loop designs

Benefits:

  • Pre-Engineered Geothermal Systems with Top Quality Materials
  • Eliminates need for fusing in field
  •    Environmentally Friendly
  • Solid brass mechanical components
  • Lowest emissions among all heating and cooling technologies
  • Plastic polymer loop pipe
  • pre-charged with environmentally safe antifreeze.
  • Avoid Catastrophic Down-Time
  • No mechanical connections in the loop field
  • Independent loops offer redundancy
  • Customizable and Scalable
  • Easily adapt to increased heat pump or multi unit requirements
  • Easy Maintenance and Troubleshooting
  • Easy Interior manifold provides easy access to measure flow and temperature and Troubleshooting
Tranquility

Tranquility 30

Tranquility 30
  • 29.6 EER/5.0 COP
  • 2-Stage Compressor
  • Optional vFlow® Internal Variable Water Flow Control
  • iGate® Communicating Controls
  • Variable Speed Indoor Fan
Free Estimate

Tranquility 22

Tranquility 22
  • 22.0 EER/4.1 COP
  • 2-Stage Compressor
  • Optional vFlow® Internal Variable Water Flow Control
  • iGate® Communicating Controls
  • Variable Speed Indoor Fan
Free Estimate
Split System

The TERRASource Split geothermal system is flexible and cost-consciously engineered for easy installation and reduced overhead. The TERRASource Split system can easily be connected to your existing furnace or installed with a new air handler from TERRASource for quiet, efficient, and economic heating and cooling...

Tranquility 30

Free Estimate
Water to Water

TERRASource’s high temperature Water-to-Water geothermal system can be used for radiant floor heating, snow/ice melt, spa and pool water heating, domestic hot water, and many other options...

Tranquility Water-to-Water

Free Estimate
Components

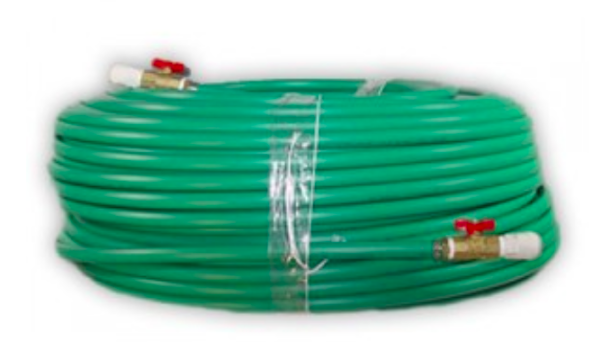

Pre-charged loops with concentrated anti-freeze, (just add water during the installation) shut off isolation valves with quick connect fittings are heat sealed on each loop for protection during installation. Anti Freeze: Glycol or Exoendosol (alcohol)...

Pre-Charged Loops

Free Estimate

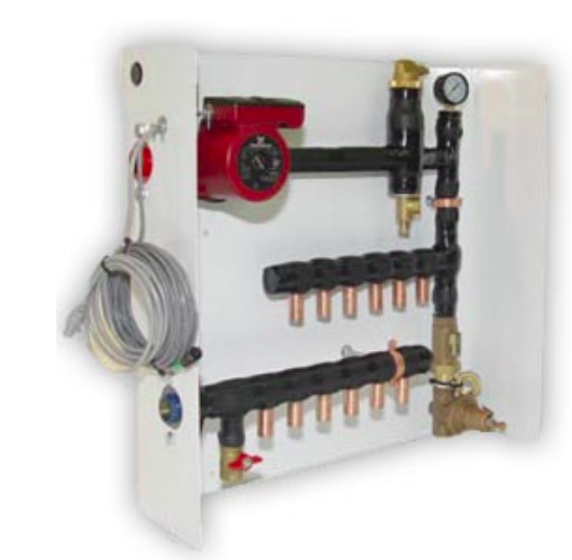

The standard TERRASource base manifold has one pump (optional second pump if required), 24V switching relay, 25′ control wiring with micro plug, 3/4″ access ports, 1″ connection ports, pressure relief valve, micro bubble air eliminator, pressure/temperature gauge all pre-assembled in a two piece painted steel cabinet...

Manifold / Flow Center

Free Estimate
Components

Tranquility 30

Tranquility 30
  • 29.6 EER/5.0 COP
  • 2-Stage Compressor
  • Optional vFlow® Internal Variable Water Flow Control
  • iGate® Communicating Controls
  • Variable Speed Indoor Fan
Free Estimate

Tranquility 22

Tranquility 22
  • 22.0 EER/4.1 COP
  • 2-Stage Compressor
  • Optional vFlow® Internal Variable Water Flow Control
  • iGate® Communicating Controls
  • Variable Speed Indoor Fan
Free Estimate
Accessories

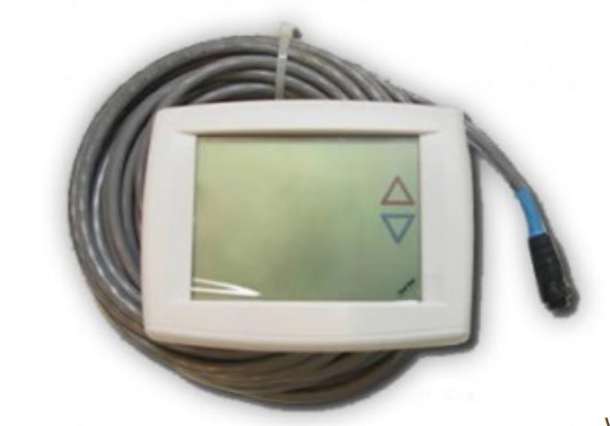

White Rogers Universal thermostat can be purchased separately or as part of a kit.

Features:

Universal Thermostat

  • Touch Screen Settings
  • Multi-Stage Settings
  • Gas or Electric Fan Operation
  • 7-day Programmable Settings
  • Keypad Lockout
Free Estimate

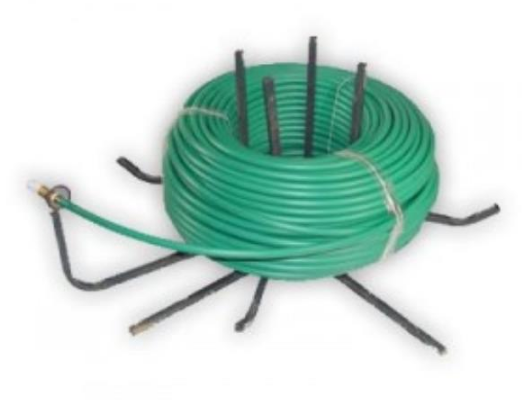

Our pex unwinder handles all sizes of coils. The coil sits on the tripod and is held in place as it with four guide-bars. The PEX feeds through a guide-ring on top of the unwinder. The PEX unwinder comes complete with two hold-down arms...

Uncoiler

Free Estimate
